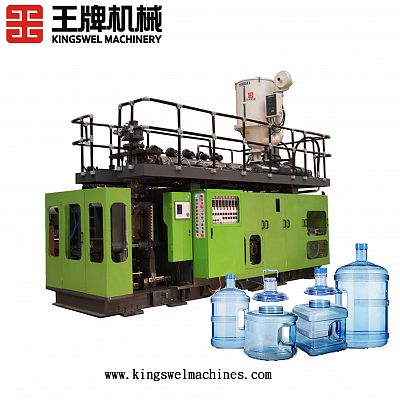

HFB82PC
Adopt import automatic temperature controlling device. Drive the screw with motor reducer to realize stepless regulating.
Machine type | Screw Diameter (MM) | Plasticizing Capacity(KG/H) | Clamping force (KN) | Accumulator volume(L) | Max. Volume of Product(L) |
HFB82PC | 82
| 90 | 210 | 1.5 | 20 |
ModeL | Series of HFB82PC |
Video | http://v.youku.com/v_show/id_XMjc4NjY5MzA3Mg==.html?spm=a2hzp.8253869.0.0 |
Website | |
Die head | special designed die head |
Extrusion system | Adopt import automatic temperature controlling device. Drive the screw with motor reducer to realize stepless regulating. |
Clamping device | Adopt bi-directional synchronous clamping device with double axis single cylinder. |
Hydraulic system | The whole hydraulic system adopts import controlling components with famous broad and proportional controlling circle. |
Electric controlling system | Adopt PLC made by Panasonic. Every electric component is in famous brand. |
HFB82PC | |
Max. volume of products(L） | 25 |
Extrusion | |
Screw diameter（mm） | Φ82 |
L/D | 25:1 |
Screw Revolving Speed(Rev. /Min.) | 10～60 |
Plasticizing capacity（kg/h） | 90(PC) |
Applicable raw materials | PC |
Heating Zone | 5 |
Heating Power (kW) | 34 |
1.5 | |
Die Head | |
Max Diameter of Die Tooling (MM) | 80/120 (Big Die Head) |
Wall-Thickness Control Points | 100 |
Heating Zone | 4 |
Heating Power(kW) | 8.7 |
Clamping Device | |
Mould dimension（W×H）（mm） | 740×600 |
Stroke of mold platen (mm) | 330～780 |
Max clamping force（KN） | 210 |
Machine Frame | |
Lifting Stroke (mm) | 350 |
Lifting Speed (mm/min) | 30 |
Hydraulic system | |
Rated Pressure of Hydraulic Pump (MPa) | 16 |
Motor power of oil pump（kW） | 45 |
Parison Servo Control System | |
Rated Pressure (MPa) | 16 |
Rated Fluid (MPa) | 23 |
Hydraulic pump motor (kW) | 4 |
Pneumatic System | |
Air Resource Pressure (MPa) | 0.8-1 |
Working Pressure (MPa) | 0.6-0.8 |
Air Consumption (m³ /Min.) | 0.4-1 |
Water Supply | |
Water Pressure (MPa) | 0.3 |
Water Fluid (L /Min.) | 100 |
Electrical Power | |
Power Voltage | AC380V±10% |
Frequency | 50HZ |
Wire System | 3 phase 4 wire system |
Total Rated Power (kW) | 92 |
Average consumption（kW/h） | 45 |
Machine weight（T） | 11 |
Machine dimension（LxWxH）m | 5.3x2.7x3.5 |
