HC 75

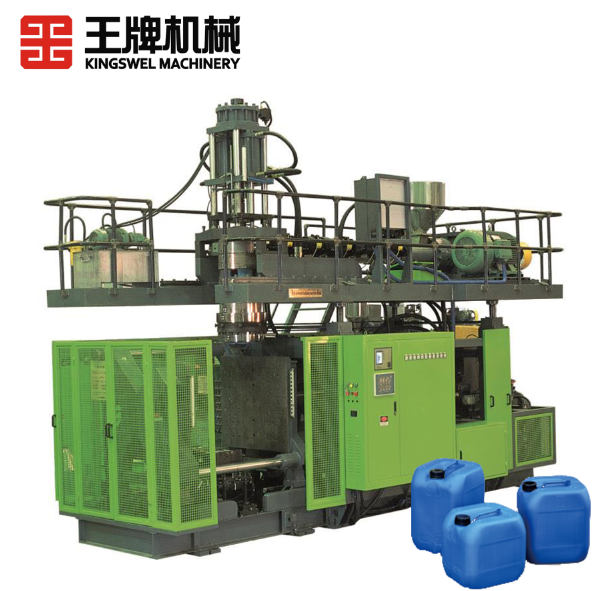

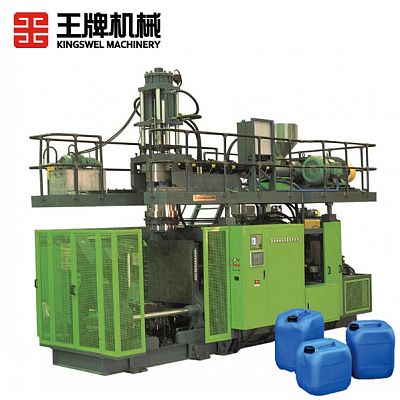

1.The blow molding machine model HC75
2. can produce bottle, kettle, can, bucket etc.
3. The machine is especially designed for producing with material such as PE, PP etc.
4. The product capacity can reach 150 cycles per hour (idle circle).
Screw Diameter (MM) | Distance of mold platen (MM) | Plasticizing Capacity(KG/H) | Clamping force (KN) | Average consumption(KW/H) |
75 | 250-800 | 100 | 215 | 37 |
ModeL | Series of HC75 |
1.The blow molding machine model HC75 2. can produce bottle, kettle, can, bucket etc. 3. The machine is especially designed for producing with material such as PE, PP etc. 4. The product capacity can reach 150 cycles per hour (idle circle). | |
Video | |
Website | |
Die head | Accumulator |
Extrusion system | Extrusion system: Imported automatic temperature controlling device. |
Clamping device | Bi-directional synchronous clamping device with single double-axis cylinder.
|
Hydraulic system | The whole hydraulic system adopts imported controlling components with famous brand and proportional controlling circle.
|
Electric controlling system | Adopt PLC made in Japan. Every electric component is in famous brand. |
HC75 | ||
Max. volume of products(L） | 25(30) | |
Extrusion | ||
Screw diameter（mm） | Φ75 | |
L/D | 25:1 | |
Screw Revolving Speed(Rev. /Min.) | 10～80 | |
Plasticizing capacity（kg/h） | 100(HDPE) | |
Applicable raw materials | HDPE | |
Heating Zone | 4 | |
Heating Power (kW) | 18 | |
Driving power（kW） | 30 | |
Die Head | ||
Accumulator volume（L） | 4.2（3.1kg） | |
Max diameter of die（mm） | 250 | |
Heating Zone | 4 | |
Heating Power(kW) | 18 | |
Clamping Device | ||
Mould dimension（W×H）（mm） | 750×650 | |
Stroke of mold platen (mm) | 250～800 | |
Max clamping force（KN） | 215 | |
Machine Frame | ||
Lifting Stroke (mm) | 350 | |
Lifting Speed (mm/min) | 30 | |
Hydraulic system | ||
Hydraulic system pressure（Mpa） | Small pump | 16 |
Big pump | 12 | |
Motor power of oil pump（kW） | 22 | |
Parison Servo Control System | ||
Rated Pressure (MPa) | 16 | |
Rated Fluid (MPa) | 23 | |
Hydraulic pump motor (kW) | 4 | |
Pneumatic System | ||
Air Resource Pressure (MPa) | 0.8-1 | |
Working Pressure (MPa) | 0.6-0.8 | |
Air Consumption (m³ /Min.) | 0.4-1 | |
Water Supply | ||
Water Pressure (MPa) | 0.3 | |
Water Fluid (L /Min.) | 100 | |
Electrical Power | ||
Power Voltage | AC380V±10% | |
Frequency | 50HZ | |
Wire System | 3 phase 4 wire system | |
Total Rated Power (kW) | 92 | |
Average consumption（kW/h） | 37 | |
Machine weight（T） | 12 | |
Machine dimension（LxWxH）m | 4.5x2.5x3.8 | |
