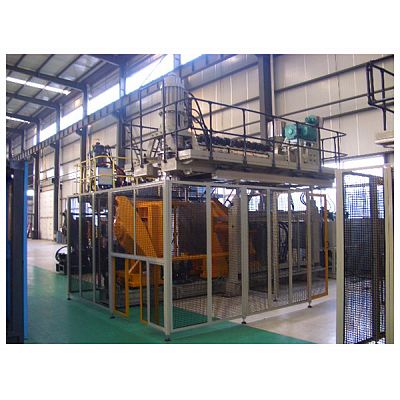

Mode: FT350-90 FT series
1. FT350-90 is appropriate for 20-60L .
2. chemical pail pack, food pail pack, build coating pail pack, medicine pail pack, tool cases, automobile fuel tank, hollow accessories, large toy, wharf buoys, tray, large blow pipe, accessories of industry, agriculture and military industries.
Screw Diameter (MM) | Distance of mold platen (MM) | Plasticizing Capacity(KG/H) | Clamping force (KN) | Average consumption(KW/H) |
90 | 400-1050 | 180 | 350 | 78 |
BASIC INSTALLATION INCLUDING
l Die head：8L accumulator head with imported parison thickness controller.
l Parison control：adopts Austria 100 point axial parison thickness controller.
l Extrusion system：screw diameter is 90mm, L/D is 30, adopts imported automatic
Temperature control device, drive by DC motor through hard-tooth surface reducer.
l Clamping device: new type two-rod clamping device, linear rolling guide way,
linear displacement sensor.
l Take out device：drive by air cylinder, linear rolling guide way realize
Automatic taking out machine.
l Bottom blowing：special bottom blow device.
l Pneumatic system：adopts Japan SMC brand.
l Hydraulic system：proportion pressure control with big flow cartridge valve system. Main component of hydraulic adopts Japan YUKEN ect. Imported brand.
l Electrical system：The computer control system adopts Europe standard control module, advanced man-machine interface replace panels system function, high automation degree, flexible application functions（process parameters setting), machine state concentrated display, open structure and field bus interface, and can be operating directly.
Item | Value | Unit | |
General information | Max. product volume | 60 | L |
Screw Dia. | φ90 | mm | |
Screw Length/Dia. Ratio | 30 | ||
Extruder system | Plasticising capacity(HDPE) | 180 | Kg/h |
Heating power of barrel | 21.6 | kw | |
Driving power(Frequency Conversion) | 55 | Kw | |
Heating zone of barrel | 4 | Zones | |
Lifting stroke of extruder surface | 200 | mm | |
Die head | Max storing volume | 8--9 | L |
Max shooting material speed | 1.5 | Kg/sec | |
Die mouth diameter | 100~300 | Mm | |
parison thickness control points | 100 | Points | |
Heating zone of die head | 4 | Zone | |
Heating power of die head | 22 | kw | |
Clamping system | Clamping force | 350 | KN |
Mold Platen | 950x900 | mm | |
Max. mold(W×H) | 950×900 | mm | |
Clamping speed | 320 | Mm/sec | |
Mold opening speed | 300 | Mm/sec | |
Distance of mold platen | 400-1050(1200) | mm | |
Hydraulic system | Big pump rated pressure | 12 | Mpa |
Max pressure of small pump | 18 | Mpa | |
Big pump rated flow | 128 | L/MIN | |
Small pump rated flow | 35 | L/MIN | |
Hydraulic pump motor power | 30 | KW | |
Hydraulic servo system of parison thickness controller | Rated pressure | 10 | Mpa |
Rated flow | 23 | L/min | |
Motor power of hydraulic pump | 4 | kw | |
Take-out device | Take-out stroke ( mm ) | 350 | mm |
Clamping stroke ( mm ) | 1100 | mm | |
Frame ware | Lifting speed (mm / min.) | 30 | Mm/min |
Lifting stroke ( mm ) | 390 | mm | |
Pneumatic system | pressure of air supply | 0.7 | Mpa |
Working pressure | 0.6 | Mpa | |
Air consumption | 0.6 | M3 / min. | |
Water supply | Pressure of water supply | 0.3 | MPa |
Power supply | Voltage | AC380V±10% | |
Frequency | 50 | HZ | |
Connect system | 3 phase 4 wires | ||
total rated power (reference) | 136 | KW/H | |
Average consumption (reference) | 78 | KW/H | |
Related | Machine weight | 15 | T |
Diemension | 6.8*4.2*4.8 | m |
