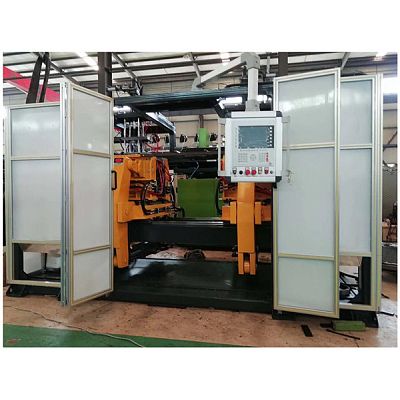

FJB90R
Mode: Series of FJB90
1.The blow molding machine mode FJB90
2. can produce bottle, kettle, can, bucket etc.
3. The machine is especially designed for producing with material PE, PP, and so on.
Screw Diameter (MM) | Distance of mold platen (MM) | Plasticizing Capacity(KG/H) | Clamping force (KN) | Average consumption(KW/H) |
90 | 200-560 | 140 | 115 | 48 |
Basic installation including
● Die head: single head with continuously extrusion
● Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
● Clamping device: Adopt bi-platen clamping device to stabilize equipment well. with high speed.
● Blowing device: with upper blowing type. Controlling unit adopts pneumatic equipment made by FESTO company.
● Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.
●Electric controlling system: Adopt high performance PC system made in B&R in Austria . Every electric component is of world-famous brand.
Item | Parameter | Unit | Remarks | |
Clamping device | Clamping force | 115 | KN | |
Volume (single die head) | Max. 12L (according to product actual shape and dimension) | |||
Volume(4 cavities) | Max.2000 | ml | ||
Volume(6 cavities) | Max.1200 | ml | ||
Mold plate dimension | 520X450 | mm | WXH | |
Mold moving stroke | 660－750 | mm | ||
Mold distance | 200－560 | mm | ||
Mold moving controller | Electric ruler | mm | ||
Extrusion device | Screw dia. | φ90 | mm | |
L/C | 25：1 | L/D | 38CrMoALA | |
Driving mode | Motor＋gear box | |||
Barrel heating zone | 4 | OMRON temperature module | ||
Plasticizing capability | 120－140（HDPE） | Kg/h | ||
Heating power | 26 | KW | ||
Die head | Four die head（CD: 160MM） | continue | ||
Six die head（CD: 90MM） | continue | |||
Heating zone | 3－6 | |||
Heating power | 10－18 | KW | ||
Die dia. | mm | |||
Air, water, hydraulic system | Oil pump motor power | 18.5 | Kw | |
Hydraulic system rated pressure(big pump) | 12 | Mpa | ||
Small pump pressure | 14 | Mpa | ||
Hydraulic system rated flux(big pump) | 120 | L/min | ||
Hydraulic system rated flux(small pump) | 10 | L/min | ||
Air rated pressure | 0.7 | Mpa | ||
Air consuming | 0．8 | m3/min | ||
Water pressure | 0.3 | Mpa | ||
Water consuming | 150 | L/min | ||
Electric system | Temperature controller | OMRON | ||
Loading protection | Frequency | |||
Action controller | OMRON PLC | |||
Screen | HITECH | |||
Time setting | Screen | |||
Machine dimension | L | 4000 | mm | L |
W | 3500 | mm | W | |
H | 2900 | mm | H | |
Power | Voltage | 380 | V | |
Frequency | 50 | Hz | ||
Line | 3 phase, 4 line | |||
General power | 108 | KW | ||
Average consuming | 48 | KW | ||
Weight | 11 | T |
