FJB90
Mode: Series of FJB90

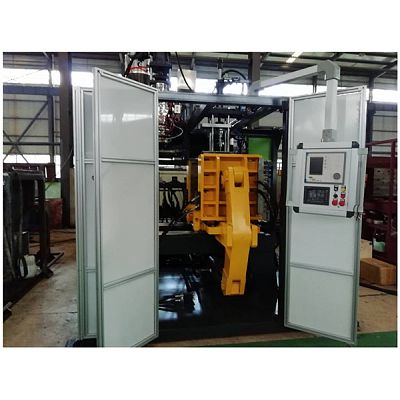

1. The blow molding machine mode FJB90
2. can produce bottle, kettle, can, bucket etc, suitable for 5L-20L
3. The machine is especially designed for producing with material PE, PP, and so on.
Screw Diameter (MM) | Distance of mold platen (MM) | Plasticizing Capacity(KG/H) | Clamping force (KN) | Average consumption(KW/H) |
90 | 460-980 | 130 | 250 | 105 |
Basic installation including
● Die head: single head with continuously extrusion
● Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
● Clamping device: Adopt bi-platen clamping device to stabilize equipment well. with high speed.
● Blowing device: with upper blowing type. Controlling unit adopts pneumatic equipment made by FESTO company.
● Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.
● Electric controlling system: Adopt high performance PC system made in B&R in Austria . Every electric component is of world-famous brand.
FJB901TP | ||
Max. volume of products (L） | 25 | |
Extrusion | ||
Screw diameter（mm） | Φ90 | |
L/D | 24:1 | |
Plasticizing capacity（kg/h） | 130( HDPE ) | |
Applicable raw materials | PE | |
Driving power（kW） | 45 | |
Die Head (Continuous) | ||
Max diameter of die（mm） | 200 | |
Heating Zone | 3 | |
Heating Power(kW) | 10 | |
Clamping Device | ||
Mould dimension（W×H）（mm） | 660×660 | |
Stroke of mold platen (mm) | 460～980 | |
Max clamping force（KN） | 250 | |
Machine Frame | ||
Lifting Stroke (mm) | 150 | |
Hydraulic system | ||
Hydraulic system pressure（Mpa） | Big pump | 13 |
Motor power of oil pump（kW） | 22 | |
Pneumatic System | ||
Air Resource Pressure (MPa) | 0.7 | |
Working Pressure (MPa) | 0.6 | |
Air Consumption (m³ /Min.) | 0.8 | |
Water Supply | ||
Water Pressure (MPa) | 0.3 | |
Water Fluid (L /Min.) | 120 | |
Electrical Power | ||
Power Voltage | AC380V±10% | |
Frequency | 50HZ | |
Wire System | 3 phase 4 wire system | |
Total Rated Power (kW) | 105 | |
Machine weight（T） | 10 | |
Machine dimension（LxWxH）m | 4.8X3X3.1 | |
