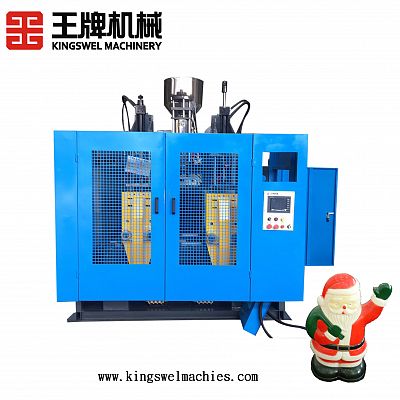

Mode: Series of FJB80R
1. The blow molding machine mode FJB80R is A New DOUBLE STATION machine
2. Can produce bottle, kettle, can, bucket etc, suitable for ≤5L
3. The machine is especially designed for producing with material PE, PVC, PC, PP and so on.
4. The productive capacity can reach 1200 mold/hr (idle cycle).
Screw Diameter (MM) | Distance of mold platen (MM) | Plasticizing Capacity(KG/H) | Clamping force (KN) | Average consumption(KW/H) |
80 | 200-580 | 100 | 100 | 20 |
Basic installation including
● Die head: Side-feed /center feed die head
● Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with transducer and motor reducer to realize stepless regulating.
● Blowing device: with upper blowing type
● Hydraulic system: Use double-vane pump. The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.
● Electric controlling system: Adopt programmable controller made in Japan. Every electric component is of world-famous brand.
FJB80RP | ||
Max. volume of products (L） |
5L(Single) | |
Extrusion | ||
Screw diameter（mm） | Φ80 | |
L/D | 24:1 | |
Screw revolving speed ( Rev./Min.) | 10-80 | |
Plasticizing capacity（kg/h） | 80-100( HDPE ) | |
Applicable raw materials | PE | |
Driving power（kW） | 30 | |
Die Head (Continuous) | ||
Center Distance | 150 | |
Max diameter of die（mm） | 100 | |
Heating Zone | 8 | |
Heating Power(kW) | About 6 | |
Clamping Device | ||
Mould dimension（W×H）（mm） | 380×380 | |
Stroke of mold platen (mm) | 200～580 | |
Max clamping force（KN） | 100 | |
Machine Frame | ||
Lifting Stroke (mm) | 150 | |
Hydraulic system | ||
Hydraulic system pressure（Mpa） | Big pump | 10 |
Motor power of oil pump（kW） | 15 | |
Pneumatic System | ||
Air Resource Pressure (MPa) | 0.7 | |
Working Pressure (MPa) | 0.6 | |
Air Consumption (m³ /Min.) | 0.4 | |
Water Supply | ||
Water Pressure (MPa) | 0.3 | |
Water Fluid (L /Min.) | 120 | |
Electrical Power | ||
Power Voltage | AC380V±10% | |
Frequency | 50HZ | |
Wire System | 3 phase 4 wire system | |
Total Rated Power (kW) | 68 | |
Machine weight（T） | 8 | |
