Mode: Series of FJB45

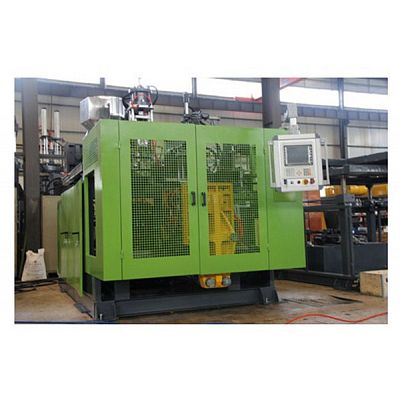

1. The blow molding machine mode FJB45 is new machine.
2. Can produce packaging barrels, milk bottles, cosmetic bottles, beverage bottles, drinking bottles, medicine bottles etc.
3. The machine is especially designed for producing with material PE, PP ,PVC and so on.
4. The machine is suitable for Automatic production lines, and the machine can be equipped with automatic deflashing device.
Screw Diameter (MM) | Distance of mold platen (MM) | Plasticizing Capacity(KG/H) | Clamping force (KN) | Average consumption(KW/H) |
45 | 180-480 | 30 | 38 | 15 |
Basic installation including
● Die head: feed die head
● Extrusion system: Drive the screw with transducer and motor reducer to realize stepless regulating.
● Blowing device: with upper blowing type
● Hydraulic system: Use double-vane pump. The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.
● Electric controlling system: Adopt programmable controller made in Japan. Every electric component is of world-famous brand.
Item | Value | Unit | |||||
General information | Max. product volume | 2(single) | L | ||||
Screw Dia. | Φ45 | mm | |||||
Screw Length/Dia. Ratio | 24 | L/D | |||||
Plasticising capacity(HDPE) | 30 | Kg/h | |||||
Extruder system | Heating power | 11 | Kw | ||||
Heating section | 3 | ||||||
Clamping system | Clamping force | 68 | KN | ||||
Mold Platen | 320x320 | mm | |||||
Distance of mold platen | 180-480 | mm | |||||
Single die head | Max. Die dia. | φ140 | mm | ||||
Heating zone | 4 | ||||||
Machine parameters | Machine Size(L×W×H) | 3.1×2.1×2.8 | m | ||||
Machine Weight | 4 | T | |||||
Blowing unit | Up-down stroke of blowing head | 150 | mm | ||||
Hydraulic system | Rated pressure of big pump | 13 | Mpa | ||||
Motor power of hydraulic pump | 11 | KW | |||||
Pneumatic system | pressure of air supply | 0.7 | Mpa | ||||
Working pressure | 0.6 | Mpa | |||||
Air consumption | 0.4 | M3 / min. | |||||
Water supply | Pressure of water supply | 0.3 | MPa | ||||
Water flow | 0.4 | m3 /min | |||||
Power supply | Voltage | AC380V±10% | |||||
Frequency | 50 | HZ | |||||
Connect system | 3 phase 4 wires | ||||||
total rated power (reference) | 27 | KW/H | |||||
Average consumption (reference) | 15 | KW/H | |||||
